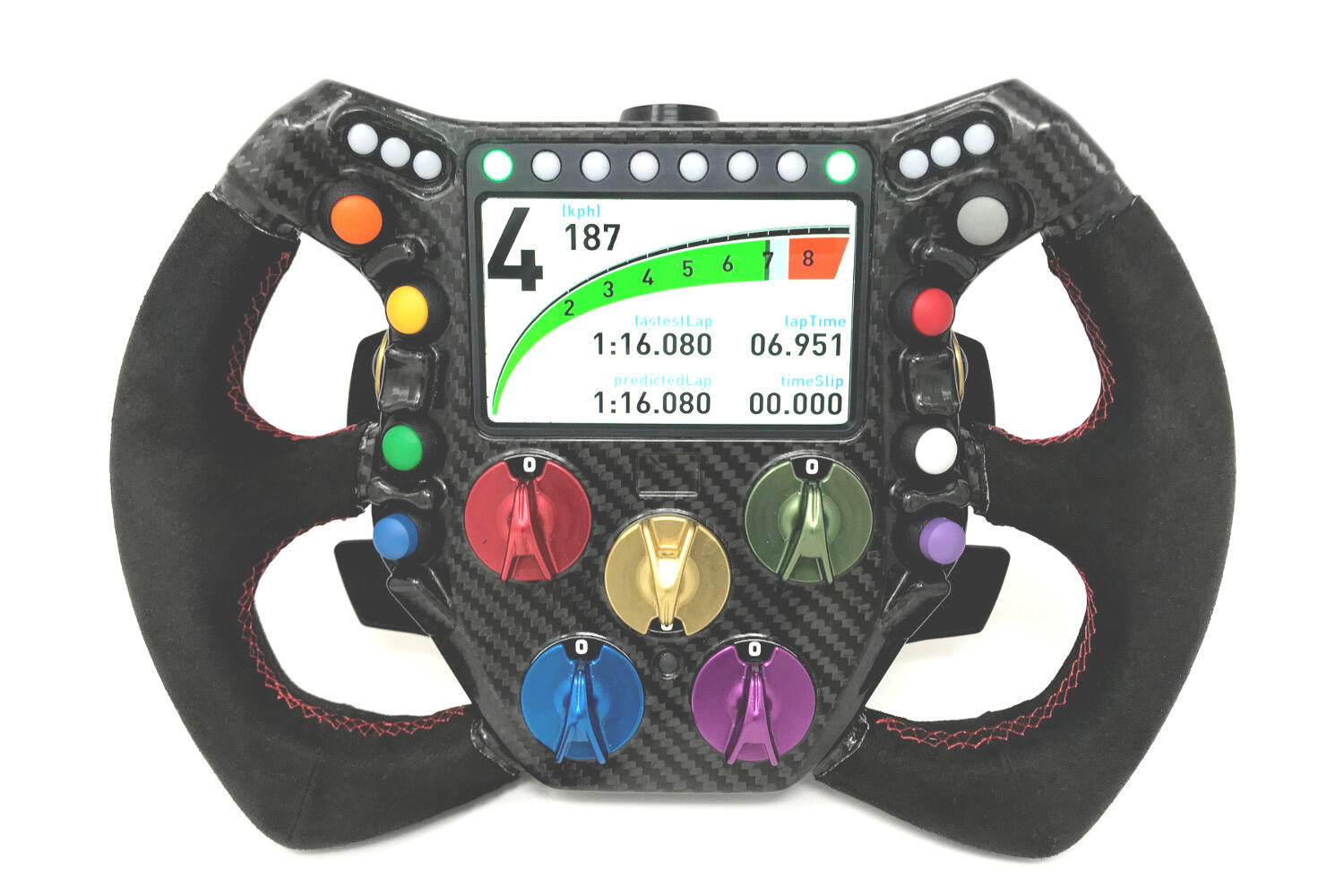

SD4 Racing Wheel

The SD4 Racing Wheel is an ergonomically shaped lightweight carbon racing wheel with an integrated high resolution 4" display fully configurable and customisable switches and LED operation. Up to 10 buttons (including isolated radio button) and five multifunction rotary switches. There are options to include digital paddle levers for UP and DOWN gear change requests as well as two analogue progressive levers which can be used to control features such as automatic clutch operation. Two CAN2.0B buses, and twin Ethernet connections mean the SD4 retains the capability and flexibility to act as a central hub in a vehicles communication system.

Expand All

Processing

  • Powerful RISC CPU for advanced strategy execution

Display

  • 4.3” WVGA high resolution ultra bright for daylight to dark operation with intelligent auto dimming

Inputs

  • 5 rotary (10 position) switch inputs
  • 10 snap action button switch inputs
  • 3 general user configurable switch inputs

Outputs

  • 3 user configurable lowside outputs

Interfaces

  • 2 full duplex Ethernet for configuration and data download
  • 2 CAN 2.0B interfaces for communication with other controllers or logging systems
