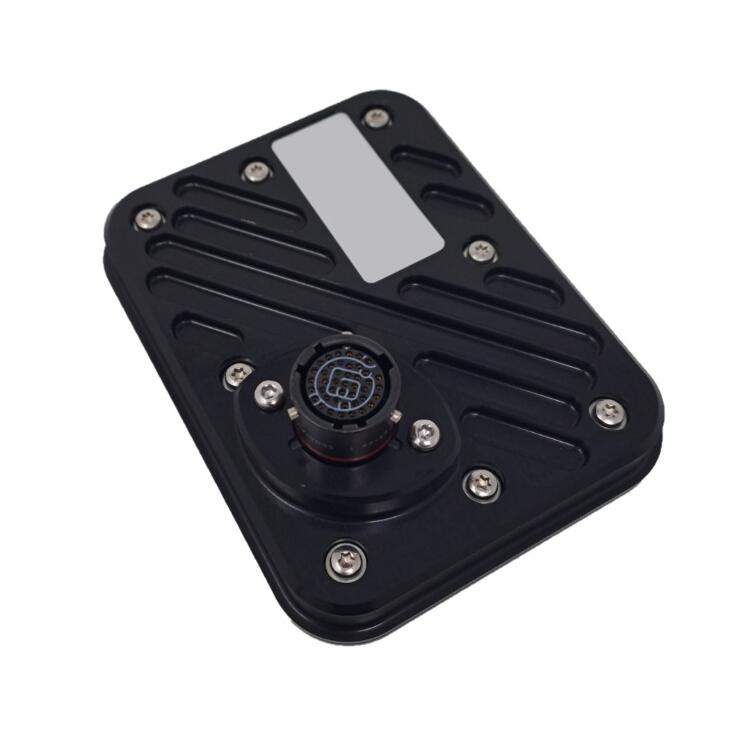

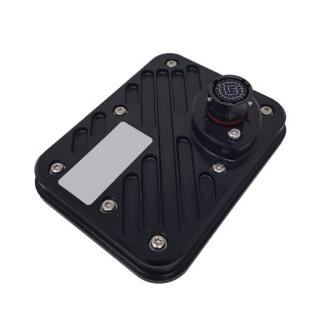

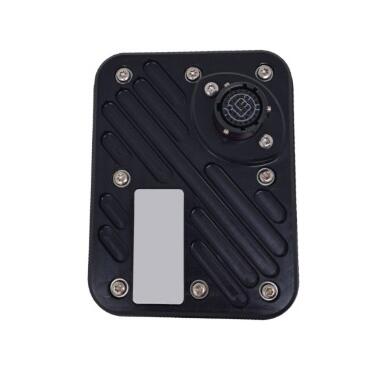

Mini Comms Hub

The “Mini Comms Hub” or MCH is designed to bridge communications between non compatible CAN devices. It features twin Ethernet, 2 fully flexible CAN buses and real-time maths capability as well as 10 physical inputs and USB logging as standard (with an LR ECU).

Expand All

General

  • Powerful RISC CPU for advanced strategy execution
  • Real time maths up to 8000 operators a second

Inputs

  • 6 user configurable general purpose analogue sensor inputs
  • 4 user configurable switch inputs

Interfaces

  • Twin 100 MHz full duplex Ethernet for calibration, configuration and ECU streaming
  • 2 CAN 2.0B interfaces with fully flexible CAN configuration
  • RS232 serial interface
  • USB 2.0 for bulk data storage on USB stick

Power Supply

  • 8 to 80V DC
  • Regulated 5V sensor supply output

Physical

  • 2x Deutsch Autosport connectors with a total of 44 pins
  • 1x Lemo connector for USB
  • CNC machined, black anodised aluminium case
  • Maximum dimensions including the connectors are 106x106x38 mm
  • Total mass is ~235 grams
