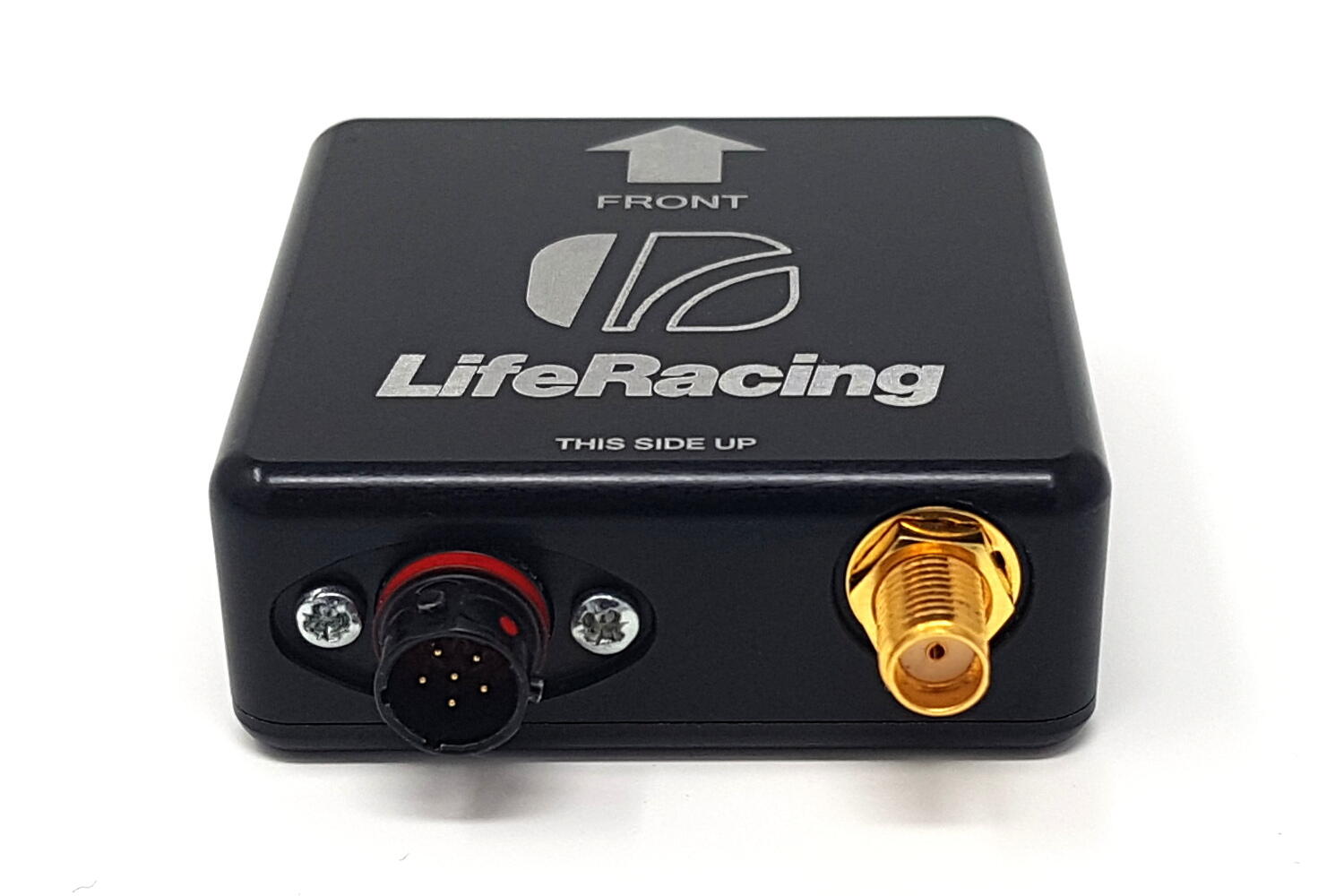

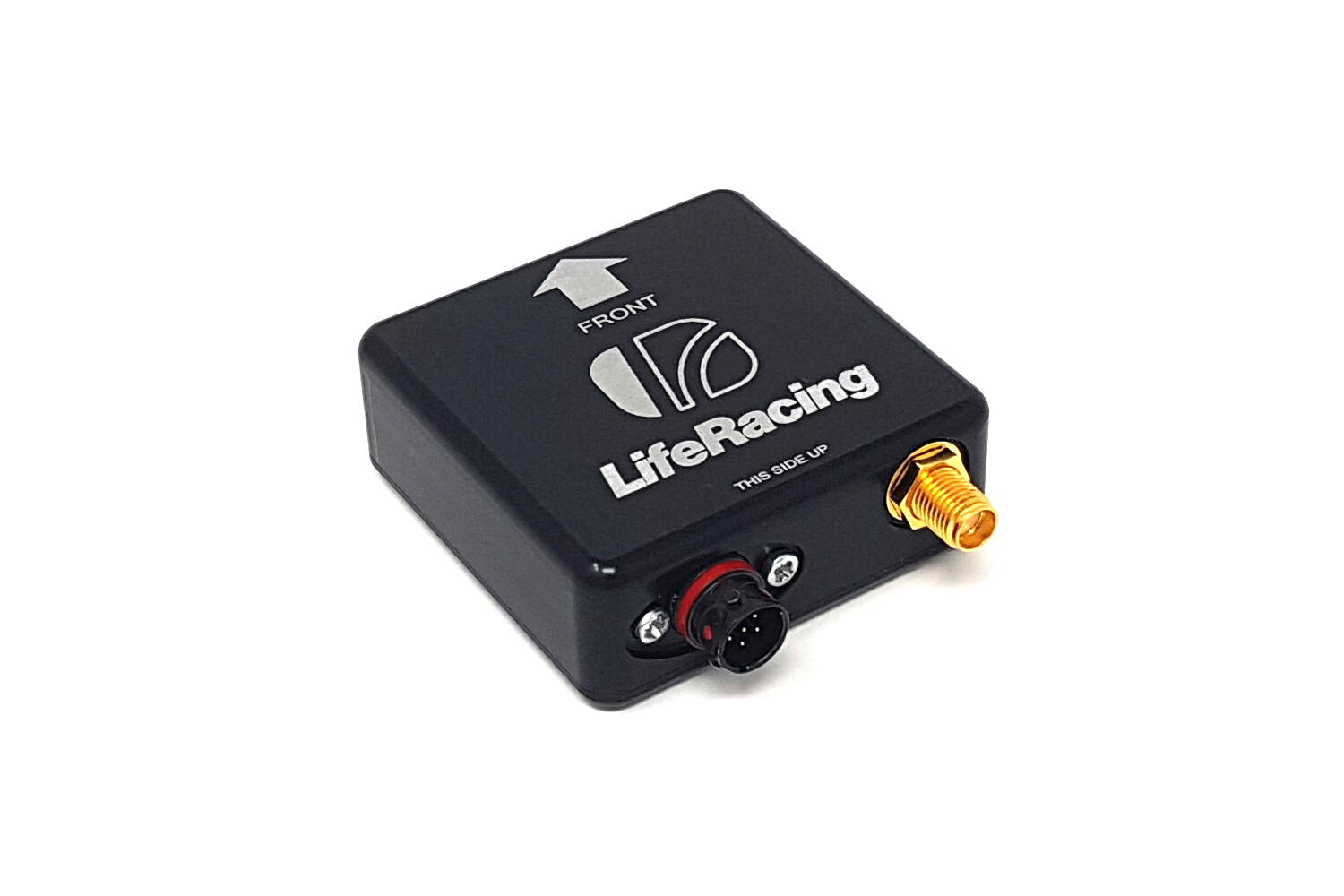

GPS-AG50

Ultra Compact and Low Mass For High Quality Chassis Dynamics Data

50hz GPS engine

Lateral, Longitudinal and vertical G force measurement

Chassis Roll rate, Pitch rate and Yaw rate

Simple and low pin count connection - Only requiring power, ground and CAN connections this neatly packaged sensor array can be easily incorporated into vehicle system designs.

Remote GPS aerial - allows for optimal mounting in the chassis of the sensor package whilst at the same time allowing optimal GPS aerial positioning for optimal coverage

Expand All

Specification

  • 50Hz GPS tracking with CAN 2.0B
  • 3 axis acceleration ± 8g lat, long, vert
  • 3 axis gyroscope ±1000deg/s pitch, roll, yaw
  • Configurable frame identifiers and cut-off frequencies

Power Supply

  • 6V to 28V DC

Physical

  • CNC machined sealed, black anodised aluminium case
  • 6 way Deutsch Autosport connector
  • Maximum dimensions including the connectors are 58 x 50 x 20 mm
  • Operating temperature -25 to +85⁰C
  • Sealed to IP67
  • Total mass ~65g
